RS-6 AIRCRAFT RESCUE EQUIPMENT
RS-6 Special Aircraft Rescue Tools

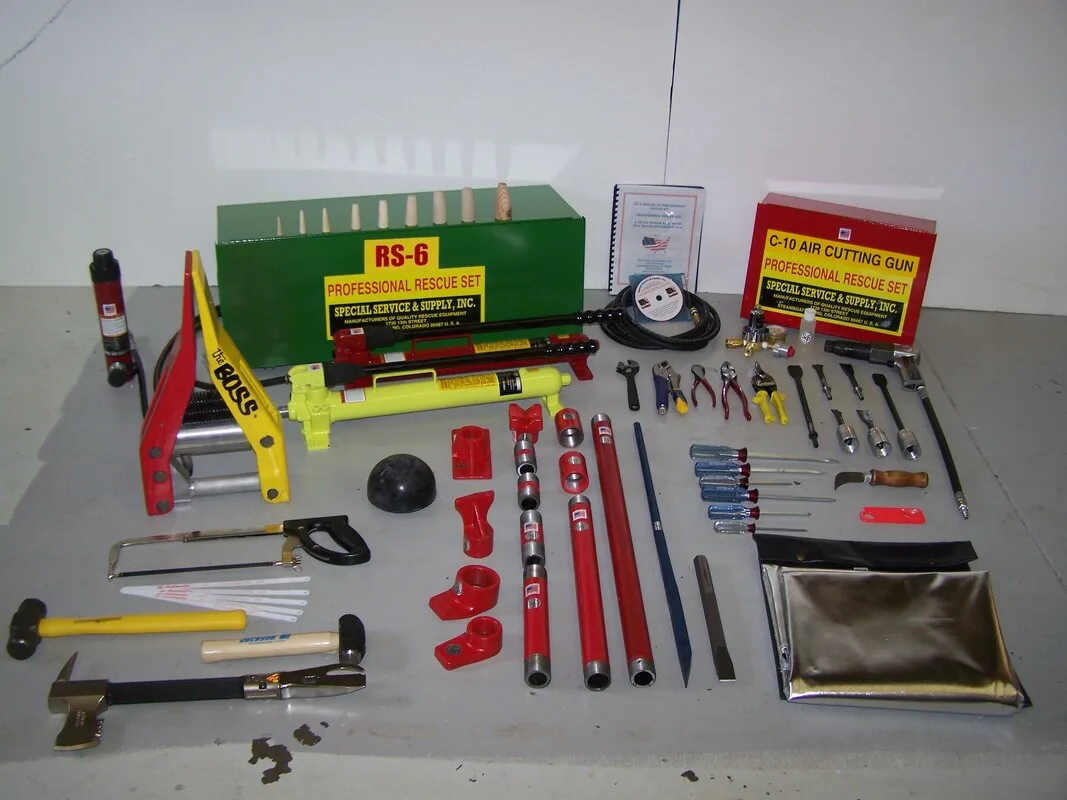

rs-6, 10 ton aircraft rescue equipment set
The EXTRICATOR® RS-6 Aircraft Rescue Equipment set provides 10 tons of spreading capacity in a self-contained aircraft rescue equipment set. It uses large amounts of spreading and pushing power in confined spaces without external power sources. The new high-pressure, high-efficiency, dual-speed hand-operated hydraulic pumps generate up to 10,000 PSI of hydraulic pressure.
The “BOSS”™ hydraulic rescue spreader has jaws that are ¾ " thick when closed and a sizeable 11-square-inch pushing surface. It exerts up to 12,000 pounds of force at the closed tips to move or lift metal or objects, obstruct access, or move or open collapsed metal or structures. The applied force increases as the tips open.
With this set, you facilitate fast and efficient rescue operations by pushing or spreading entrapping materials. This set includes a 10-ton straight hydraulic ram with a 6-inch stroke and a separate manual pump and attachments, an air-cutting gun with three types of chisels, and an assortment of hand tools. The 10-ton hydraulic ram has 5-inch, 10-inch, 18-inch, and 30-inch extension tubes for the attachments to provide powerful pushing and spreading force application where needed.
The two H-1T-10 pumps in the set allow the rescue professional to rapidly operate the "BOSS" spreader and the 10-ton ram without needing external power sources.
The H-1T-10 pumps utilize an internal pressure relief valve to provide overload protection and compliance.
The H-1T-10 pumps have a new dual-speed, high-flow design. A convenient carrying handle for a more extensive hydraulic fluid reservoir with the fill port located on top of the reservoir under the carrying handle. A sizeable hydraulic fluid control valve designed for easy operation while wearing gloves is situated on the side of the pump. The more extended pump handle with ergonomic grip and internal pressure relief valve complying with ANSI/ASME safety standards have been incorporated into the design to increase operation speed and reduce pumping f by the operator.
For applications with corrosion or weight considerations, the optional Model H-2T-A-10 aluminum pump provides similar performance, size, speed, and features while weighing in at a mere 9 lbs. is available.
The “BOSS” ™ spreader, pump, and hydraulic rams utilize a "closed operating system," allowing them to be used in the open air, confined spaces, and underwater.
The “BOSS”™ hydraulic rescue spreader has jaws that are ¾ " thick when closed and a sizeable 11-square-inch pushing surface. It exerts up to 12,000 pounds of force at the closed tips to move or lift metal or objects, obstruct access, or move or open collapsed metal or structures. The applied force increases as the tips open.
With this set, you facilitate fast and efficient rescue operations by pushing or spreading entrapping materials. This set includes a 10-ton straight hydraulic ram with a 6-inch stroke and a separate manual pump and attachments, an air-cutting gun with three types of chisels, and an assortment of hand tools. The 10-ton hydraulic ram has 5-inch, 10-inch, 18-inch, and 30-inch extension tubes for the attachments to provide powerful pushing and spreading force application where needed.
The two H-1T-10 pumps in the set allow the rescue professional to rapidly operate the "BOSS" spreader and the 10-ton ram without needing external power sources.
The H-1T-10 pumps utilize an internal pressure relief valve to provide overload protection and compliance.
The H-1T-10 pumps have a new dual-speed, high-flow design. A convenient carrying handle for a more extensive hydraulic fluid reservoir with the fill port located on top of the reservoir under the carrying handle. A sizeable hydraulic fluid control valve designed for easy operation while wearing gloves is situated on the side of the pump. The more extended pump handle with ergonomic grip and internal pressure relief valve complying with ANSI/ASME safety standards have been incorporated into the design to increase operation speed and reduce pumping f by the operator.
For applications with corrosion or weight considerations, the optional Model H-2T-A-10 aluminum pump provides similar performance, size, speed, and features while weighing in at a mere 9 lbs. is available.
The “BOSS” ™ spreader, pump, and hydraulic rams utilize a "closed operating system," allowing them to be used in the open air, confined spaces, and underwater.
AIR CHISEL
The AIR CUTTING GUN™ SET, MODEL C-10, is the "original" air chisel designed for rescue and is included in this aircraft rescue set to provide easy, rapid cutting of sheet metal, aluminum, and steel plates up to ¼” thick. The C-10 Air Cutting Gun may be operated from any SCBA air cylinder from 2250 P.S.I to 6000 P.S.I. or other air cylinder equipped with a CGA valve without the need to adjust the regulator. The C-10A Model number designates the additional chisels provided with this aircraft rescue set.
The AIR CUTTING GUN SET, MODEL C-10A, provides:
· SPECIAL HIGH IMPACT AIR CUTTING GUN OPERATING ON 300 P.S.I. WORKING AIR PRESSURE
· HIGH PRESSURE, HIGH VOLUME, FACTORY PRE-SET, SINGLE STAGE REGULATOR OPERATES ON
6000 P.S.I. OR LESS AIR CYLINDERS WITHOUT THE NEED FOR SEA ADJUSTMENT.
· FOOT-LONG AIR HOSE WITH 300 P.S.I. WORKING PRESSURE.
· TWO (2) “T” TYPE SHEET METAL CHISELS
· TWO (2) SEVEN INCH FLAT CHISELS
· TWO (2) FIFTEEN INCH FLAT CHISELS
· THREE (3) POSITIVE RETENTION QUICK CHANGE CHISEL RETAINERS WITH SLIP-RESISTANT
KNURLED GRIPS
· LOCKABLE 16 GAUGE STEEL AIR CUTTING GUN STORAGE BOX WITH REGULATOR PEDESTAL, AIR
GUN LUBRICANT, OPERATION VIDEO, AND OPERATION AND MAINTENANCE MANUAL
. THIS AIR HAMMER IS DESIGNED TO CUT QUARTER INCH (1/4”) MILD STEEL PLATE, THREE
QUARTER-INCH (3/4”) MILD STEEL BOLTS, AUTOMOBILE SAFETY DOOR LOCK BOLTS, DOOR
POSTS, STEEL DOORS, SHEET METAL, AIRCRAFT FRAMES, AND BODIES IN A MATTER OF
SECONDS.
· THIS TOOL KIT INCLUDES A HEAVY-DUTY LOCKABLE METAL STORAGE BOX.
The C-10A AIR CUTTING GUN SET is supplied with a heavy-duty metal storage box, a fifteen-foot-long air hose, a dispenser bottle of lubricating oil, an instruction video, and an Operation and Maintenance Manual, all backed up by our exclusive manufacturer's support.
Often imitated but never duplicated, the C-10 AIR CUTTING GUN is the most powerful air chisel in its class. This air cutting gun was specifically designed for rescue and extrication—it is not a “muffler shop air hammer.”
The AIR CUTTING GUN SET, MODEL C-10A, provides:
· SPECIAL HIGH IMPACT AIR CUTTING GUN OPERATING ON 300 P.S.I. WORKING AIR PRESSURE
· HIGH PRESSURE, HIGH VOLUME, FACTORY PRE-SET, SINGLE STAGE REGULATOR OPERATES ON
6000 P.S.I. OR LESS AIR CYLINDERS WITHOUT THE NEED FOR SEA ADJUSTMENT.
· FOOT-LONG AIR HOSE WITH 300 P.S.I. WORKING PRESSURE.
· TWO (2) “T” TYPE SHEET METAL CHISELS
· TWO (2) SEVEN INCH FLAT CHISELS
· TWO (2) FIFTEEN INCH FLAT CHISELS
· THREE (3) POSITIVE RETENTION QUICK CHANGE CHISEL RETAINERS WITH SLIP-RESISTANT
KNURLED GRIPS
· LOCKABLE 16 GAUGE STEEL AIR CUTTING GUN STORAGE BOX WITH REGULATOR PEDESTAL, AIR
GUN LUBRICANT, OPERATION VIDEO, AND OPERATION AND MAINTENANCE MANUAL
. THIS AIR HAMMER IS DESIGNED TO CUT QUARTER INCH (1/4”) MILD STEEL PLATE, THREE
QUARTER-INCH (3/4”) MILD STEEL BOLTS, AUTOMOBILE SAFETY DOOR LOCK BOLTS, DOOR
POSTS, STEEL DOORS, SHEET METAL, AIRCRAFT FRAMES, AND BODIES IN A MATTER OF
SECONDS.
· THIS TOOL KIT INCLUDES A HEAVY-DUTY LOCKABLE METAL STORAGE BOX.
The C-10A AIR CUTTING GUN SET is supplied with a heavy-duty metal storage box, a fifteen-foot-long air hose, a dispenser bottle of lubricating oil, an instruction video, and an Operation and Maintenance Manual, all backed up by our exclusive manufacturer's support.
Often imitated but never duplicated, the C-10 AIR CUTTING GUN is the most powerful air chisel in its class. This air cutting gun was specifically designed for rescue and extrication—it is not a “muffler shop air hammer.”
RESCUE BLANKET
The Aluminized Rescue Blanket™, Model M-1, is the "original" heavy-duty, reusable, aluminum rescue blanket. The M-1 Aluminized Rescue Blanket is Made in America and is constructed of the finest heavy-duty aluminum-infused rip-stop 8.5 oz. Para-aramid fabric is used to build the rescue blanket.
The M-1 Aluminum Rescue Blanket is designed to provide years of reliable service. Its large 72” x 80” (182 cm x 203 cm) size will completely cover a victim. Custom-sized blankets are available upon request.
The aluminum-infused fabric can’t be beaten for its heat reflection in a flash fire. Glass shards, chips, saw sparks, and debris are repelled by the heavy-duty aluminum-infused fire-resistant rip-stop para-aramid fabric.
The Aluminized Rescue Blanket, Model M-1, comes with a heavy-duty protective storage bag constructed of water-resistant rubberized nylon fabric. The bag is designed to keep the blanket clean and dry while protecting shiny, aluminized surfaces from damage during storage.
The M-1 Aluminized Rescue Blanket is designed to provide many years of service. Grease, oil, fuels, and bodily fluids are easily removed and cleaned with soap and water. Common disinfectants may be used to eliminate biological contaminants. The M-1 Aluminized Rescue should be cleaned, disinfected, and air-dried in its protective case before storage.
The M-1 Aluminum Rescue Blanket is designed to provide years of reliable service. Its large 72” x 80” (182 cm x 203 cm) size will completely cover a victim. Custom-sized blankets are available upon request.
The aluminum-infused fabric can’t be beaten for its heat reflection in a flash fire. Glass shards, chips, saw sparks, and debris are repelled by the heavy-duty aluminum-infused fire-resistant rip-stop para-aramid fabric.
The Aluminized Rescue Blanket, Model M-1, comes with a heavy-duty protective storage bag constructed of water-resistant rubberized nylon fabric. The bag is designed to keep the blanket clean and dry while protecting shiny, aluminized surfaces from damage during storage.
The M-1 Aluminized Rescue Blanket is designed to provide many years of service. Grease, oil, fuels, and bodily fluids are easily removed and cleaned with soap and water. Common disinfectants may be used to eliminate biological contaminants. The M-1 Aluminized Rescue should be cleaned, disinfected, and air-dried in its protective case before storage.
FUEL LINE PLUG SET
The FUEL LINE PLUG SET™, Model F-2, consists of ten soft and hardwood plugs supplied in assorted sizes ranging from 1/8” to 1½” in diameter.
The set provides the equipment needed to completely seal broken fuel or hydraulic lines, leaking pipes, and holes in tanks ranging in size from 1/8" to 1-1/2" in diameter. These plugs provide an inexpensive, safe, non-sparking, environmentally responsible way to temporarily plug leaking fuel lines, hydraulic lines, and holes in tanks, drums, or pipes.
Plugging the leak by driving the plug into the leaking fuel, hydraulic line, pipe, or hole. After the leak is stopped, the system can be safely drained at a control valve.
In emergency situations, stopping the flow of the leak dramatically reduces the danger to rescuers and victims and the likelihood of fire, explosion, pollution, chemical exposure hazards, and slip-and-fall hazards associated with leaking fuel tanks, hydraulic lines, fuel lines, chemical lines, and leaking fuel or chemical drums. Stopping the leak also reduces cleanup and remediation time and costs.
The set provides the equipment needed to completely seal broken fuel or hydraulic lines, leaking pipes, and holes in tanks ranging in size from 1/8" to 1-1/2" in diameter. These plugs provide an inexpensive, safe, non-sparking, environmentally responsible way to temporarily plug leaking fuel lines, hydraulic lines, and holes in tanks, drums, or pipes.
Plugging the leak by driving the plug into the leaking fuel, hydraulic line, pipe, or hole. After the leak is stopped, the system can be safely drained at a control valve.
In emergency situations, stopping the flow of the leak dramatically reduces the danger to rescuers and victims and the likelihood of fire, explosion, pollution, chemical exposure hazards, and slip-and-fall hazards associated with leaking fuel tanks, hydraulic lines, fuel lines, chemical lines, and leaking fuel or chemical drums. Stopping the leak also reduces cleanup and remediation time and costs.
HAND TOOL SET
This set includes hand tools such as locking pliers, wire cutters, hammers, metal shears, Phillips and slot-tipped screwdrivers, a cold chisel, a pry bar, a hack saw with spare blades, and an axe.
The Survival Axe ® is designed to chop wood, composite materials, and metal. It incorporates a seat-belt cutter, glass breaker, spanner wrench, replaceable saw blade, hammer, prying tool, and eleven hex sockets. The tool assortment exceeds the requirements of FAA Circular 150/5210-14B. These tools provide rescue personnel with the most frequently needed, American-made rescue from an aircraft, vehicle, or other entrapment or structural collapse situation.

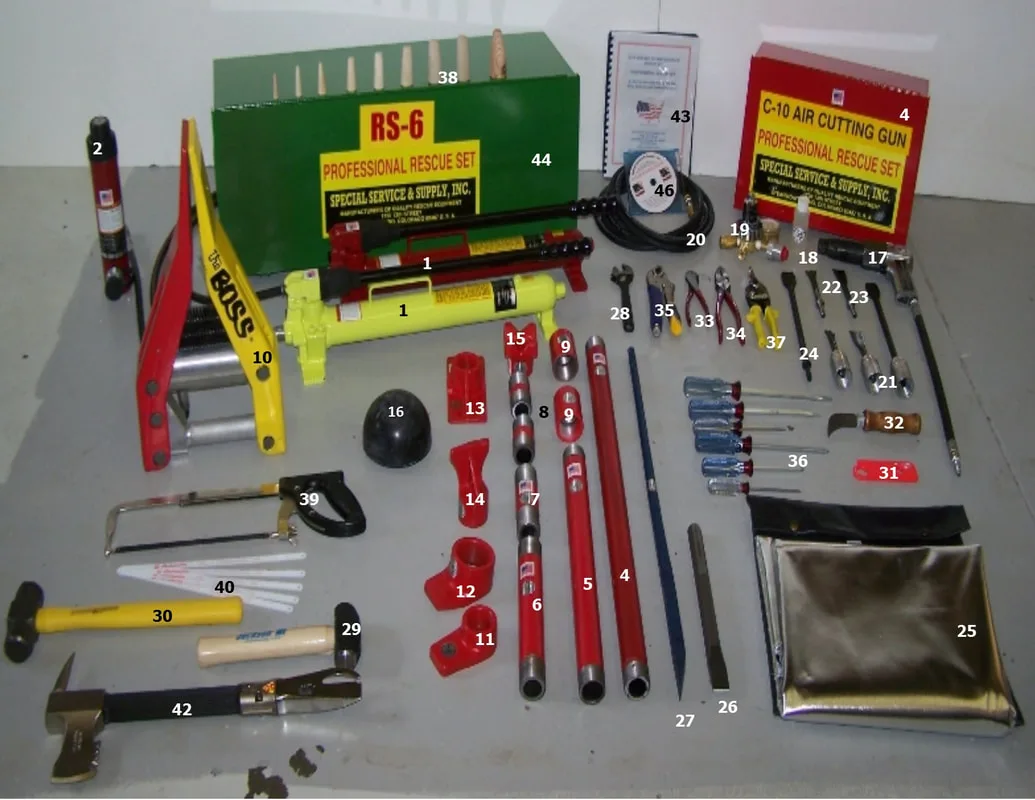

COMPONENTS OF THE RS-6 AIRCRAFT RESCUE
EQUIPMENT SET
EXTRICATOR RS-6, 10 TON AIRCRAFT RESCUE SET COMPONENTS
1. H-2T Dual Flow 10,000 P.S.I. Pump and Hose
assembly with quick connectors (2 ea.)
2. H-7T 10 Ton Short Ram (6" stroke)
3. H-8T Optional 10 ton Long Ram (10" stroke)
Not SHOWN
4. H-20-10 30" 10 Ton Ram Extension Tube
5. H-22-10 18" 10 Ton Ram Extension Tube
6. H-23-10 10" 10 Ton Ram Extension Tube
7. H-24-10 5" 10 Ton Ram Extension Tube
8. H-26-10 Short 10 Ton Extension Tube (2 ea.)
9. H-27-10 10 Ton Extension Tube Couplers
10. H-5T-10 BOSS Hydraulic Spreader
11. H-30-10 Ram Plunger Toe
12. H-31-10 Ram Cylinder Toe
13. H-32-10 Ram Flat Base Plate
14. H-33-10 Ram Wedge Head
15. H-34-10 Ram Serrated Saddle
16. H-35-10 Ram 5" Flex Head
17. AC-1 Special High Pressure Air Cutting Gun
18. PN2 Air Gun Lubricating Oil
19. AC-2 5,500 P.S.I. Capacity Pre-set Air Regulator
20. AC-3 15' 300 P.S.I. Working Pressure Air Hose
21. AC-4 Positive Retention Quick Change Chisel
Holders (3 ea.)
22. AC-6 Dual Sided "T" Type Sheet Metal
Cutting Chisels (2 ea.)
23. AC-7 7" Short Flat Chisel for cutting heavy
metal plate and bolts(2 ea.)
24. AC-8 15" Long Flat Chisel for cutting heavy
metal; plate and bolts (2 ea.)
25. M-1 72" x 80" Aluminized Rescue Blanket
and Protective Case
26. C3232 Cold Chisel 1" x 12"
27. Crow Bar 30" Straight Crow Bar
28. Wrench 8" Adjustable Wrench
29. 1.25H 2 lb. Engineer Hammer
30. 2.00H 2 lb. Sledge Hammer
31. HC1 Optional Harness Cutting Tool (Made in
Germany) (Not shown)
32. F-11 Hook Blade Rescue Knife
33. PSC7 7" Side Cutting Pliers
34. PSC10 10" Lineman's Side Cutting Pliers
35. VG10 Self Adjusting 10" Locking Pliers
36. SDS Screwdriver Set Phillips #1,#2,#3, Flat Tips 4",
6" and 8"
37. 653 Aviation Metal Cutting Shears
38. Plug Fuel Line Plug Set
39. 658 Pistol Grip Hack Saw
40. 218 18 TPI SHATTERPROOF HACKSAW
BLADES (5 EA.)
41. axe Survival Axe® (Not Shown)
42. Pry Axe Pry Axe (Optional)
43. 6M RS-6 Operation Manual
44. H-70 16 Ga Steel Rescue Tool Storage Box
45. AC-9 16 Ga Steel Air Gun Storage Box
46. Video Air Chisel Operation Video
metal; plate and bolts (2 ea.)
25. M-1 72" x 80" Aluminized Rescue Blanket
and Protective Case
26. C3232 Cold Chisel 1" x 12"
27. Crow Bar 30" Straight Crow Bar
28. Wrench 8" Adjustable Wrench
29. 1.25H 2 lb. Engineer Hammer
30. 2.00H 2 lb. Sledge Hammer
31. HC1 Optional Harness Cutting Tool (Made in
Germany) (Not shown)
32. F-11 Hook Blade Rescue Knife
33. PSC7 7" Side Cutting Pliers
34. PSC10 10" Lineman's Side Cutting Pliers
35. VG10 Self Adjusting 10" Locking Pliers
36. SDS Screwdriver Set Phillips #1,#2,#3, Flat Tips 4",
6" and 8"
37. 653 Aviation Metal Cutting Shears
38. Plug Fuel Line Plug Set
39. 658 Pistol Grip Hack Saw
40. 218 18 TPI SHATTERPROOF HACKSAW
BLADES (5 EA.)
41. axe Survival Axe® (Not Shown)
42. Pry Axe Pry Axe (Optional)
43. 6M RS-6 Operation Manual
44. H-70 16 Ga Steel Rescue Tool Storage Box
45. AC-9 16 Ga Steel Air Gun Storage Box
46. Video Air Chisel Operation Video
All pumps, hoses, and rams, are filled with mineral oil, purged of air and subject to a proof test at a minimum of 1½ times the working capacity of the tool prior to shipment.
Note: Additional tools such as an additional pump, hand tools, Come-A-Long, Rescue Chains or Hand Tools may be added to this set to meet individual customer requirements.
The EXTRICATOR® RS-6, SPECIAL AIRCRAFT RESCUE and EXTRICATION TOOL SET and the ORIGINAL AIR CUTTING GUN ™, MODEL C-10 , are each packaged in their own heavy duty storage boxes which may be sealed or locked to ensure content security. The ALUMINIZED RESCUE BLANKET, Model M-1 comes with its own protective case. A detailed Operation and Maintenance Manual and a video are included with each set.
THIS SELF CONTAINED RS-6 SPECIAL 10 TON SPECIAL AIRCRAFT EXTRICATOR ®RESCUE SET MEETS OR EXCEEDS THE REQUIREMENTS OF FAA ADVISORY CIRCULAR AC:150/5210-14B “AIRPORT FIRE AND RESCUE EQUIPMENT, TOOLS AND CLOTHING TABLE 1” FOR THE FOLLOWING ITEMS: 10 TON HYDRAULIC RESCUE SET, PNEUMATIC AIR HAMMER, FIRE BLANKET, SMALL AXE, AND THE TABLE 2 TOOLS.
Shipping weight: 255 lbs. Ships via truck freight on a pallet or FedEx Ground ® IN THREE PACKAGES, at customer's option.
EXTRICATOR® is a Registered Trademark of Special Service and Supply, Inc. All Rights Reserved.
BOSS TOOL™ Original Air Cutting Gun™ are Trademarks of Special Service and Supply, Inc. All Rights Reserved
Survival Axe is a Registered Trademark of Off The Grid Tools Corporation
