HYDRAULIC RAMS

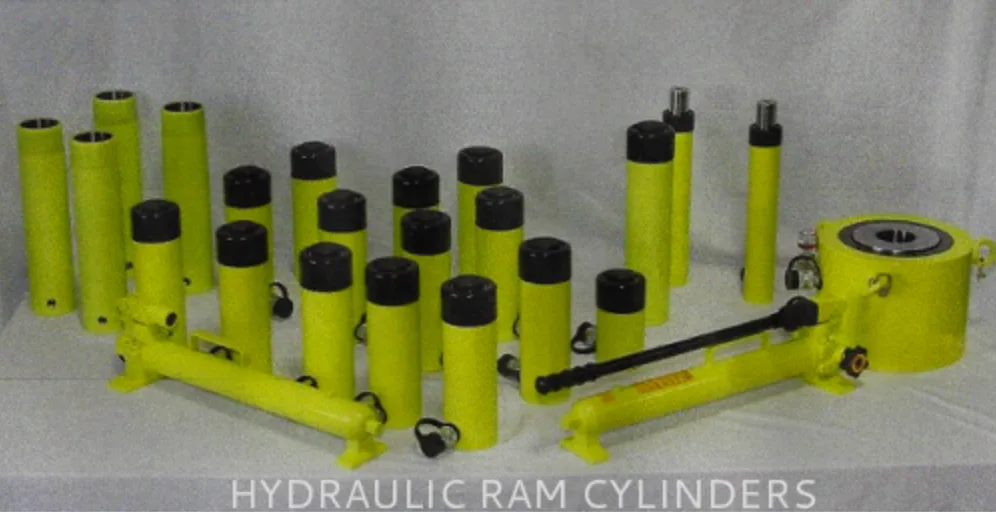

HYDRAULIC RAMS, CYLINDERS FROM 5 TONS TO 1,000 TONS

Special Service and Supply now offers a wide variety of standard and custom hydraulic rams in multiple styles and types of Made in America cylinders. These cylinders are designed and manufactured under one roof in an ANSI/ISO/ASQ American National Standard Certified Facility and meet or exceed ANSI/ASME B30.1 safety standards and ISO 9001:2008, Standard for Fluid Power Cylinders.

We can provide hydraulic rams with cylinder capacities ranging from 5 tons to 1,000 tons and strokes from .44 inches to 48 inches to meet all your lifting and spreading applications. All cylinders are provided with a lifetime warranty against workmanship and material defects.

FEATURES:

• Lifetime warranty against workmanship and material defects.
• Designed and manufactured in the USA under one roof.
• Meets or exceeds ANSI/ASME B 30.1 safety standards
• High-flow couplers with ball check and dust cap.
• Key cylinder components are heat-treated and coated to ensure desired reliability.
• Exclusive solid up-stop design to prevent piston blowout and eliminate deformation at full-rated load.
• High quality, specially designed hydraulic seals provide long life, dependability, and optimum cylinder performance.



Standard Single-Acting Spring Return Cylinder Models

Capacity            Stroke                                  Maximum Operating       Model  Number

                                                                                Pressure

Single Acting Cylinders

5     ton        3, 5, 7-inch stroke                     10,000 PSI                        SSS53,   SSS55,    SSS57

10-ton        2 6,  inch stroke                       10,000 PSI                        SSS102, SSS106

25-ton        2, 6, 8, 10-inch stroke             10,000 PSI                       SSS252, SSS256,                                                                                                                                                                   SSS258, SSS2510

55   ton        6, 13-inch stroke                       10,000 PSI                        SSS556, SSS5513D

100 ton        6, 10-inch stroke                       10,000 PSI                        SSS106, SSS10010

Low Profile Cylinders

10   ton        1.5-inch stroke                             10,000 PSI                     SSS10LP

20   ton        1.75-inch stroke                          10,000 PSI                     SSS20LP

30   ton        2.44-inch stroke                          10,000 PSI                     SSS30LP

50   ton        2.36-inch stroke                          10,000 PSI                     SSS50LP

100 ton        2.25-inch stroke                          10,000 PSI                     SSS100LP

Double Acting Cylinders

55   ton        6, 16-inch stroke                          10,000 PSI                     SSS556D, SSS5513D

100 ton        6, 12-inch stroke                         10,000 PSI                      SSS1006D, SSS10012D

Pancake Cylinders

10   ton        .44 inch stroke                              10,000 PSI                    SSS10F

20   ton        .44 inch stroke                             10,000 PSI                     SSS20F

30   ton        .50 inch stroke                             10,000 PSI                     SSS30F

50   ton        .63 inch stroke                             10,000 PSI                     SSS50F

100 ton        .63 inch stroke                             10,000 PSI                    SSS100F

Lock Nut Cylinders

55   ton        3, 6-inch stroke                             10,000 PSI                     SSS552LN,  SSS556LN

100 ton        2, 6-inch stroke                             10,000 PSI                     SSS1002LN, SSS1006LN

250 ton        2, 6-inch stroke                             10,000 PSI                     SSS2502LN, SSS2506LN

500 ton        2, 6-inch stroke                             10,000 PSI                     SSS5002LN, SSS5006LN

1,000 ton     2, 6-inch stroke                             10,000 PSI                     SS10002LN, SSS10006LN

Lock nut cylinders are designed to extend the load-holding period when hydraulic pressure is released.

Specialty & High Tonnage Cylinders are available with the following parameters:

CAPACITY                                             STROKE                                        OPERATING  PRESSURE

5 – 1,000 tons                                  2 – 48 inches                                              10,000 PSI

Call for shipping weights and delivery times. Many ram cylinders can ship via FedEx Ground ®.

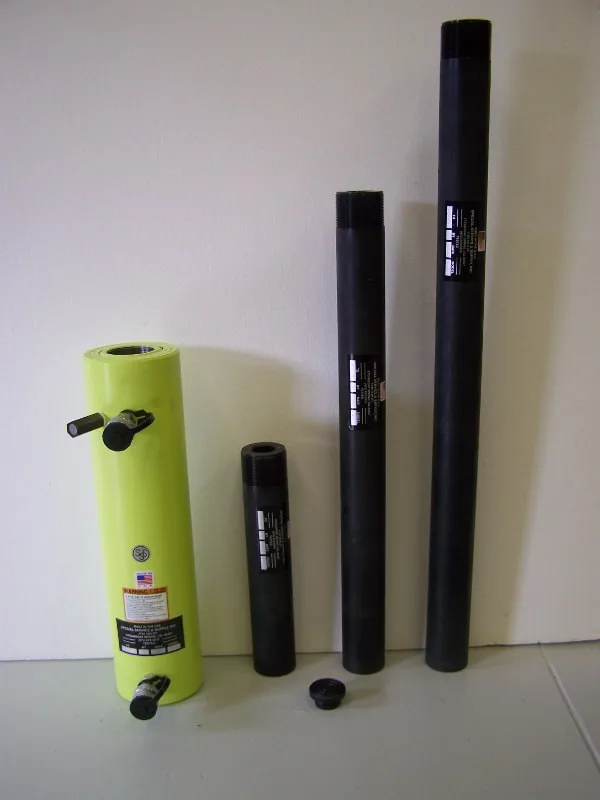

CUSTOM DOUBLE ACTING RAM CYLINDER

An example of our Custom Cylinders is this 55-ton Double-Acting Hydraulic Ram with 13”, 27”, and 40” Extensions, which was designed to meet the requirements of a crane maintenance company. It is shown below. Give us your requirements, and we can build a hydraulic ram to meet your individual needs at standard ram pricing.
